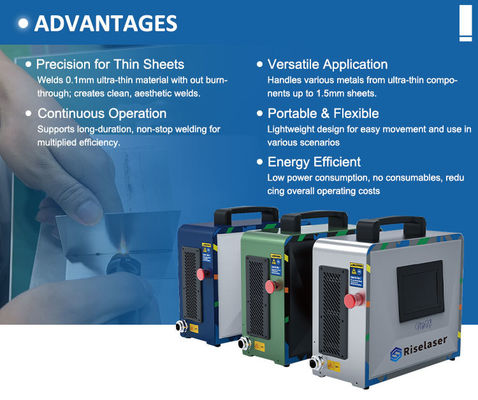

300W/600W Handheld Laser Welding Machine with 5-inch Touch Display and 0.5mm Focal Spot Diameter
Hubungi saya untuk sampel gratis dan kupon.
ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.
xDetail produk
| Daya Keluaran | 300W/600W | Diameter titik fokus | 0.5mm |
|---|---|---|---|
| Jenis Laser | Laser serat | Berat | 15 |
| Mode pengelasan | Detak | Daya rata -rata | 300 |
| Daya puncak | 600 | Panjang gelombang laser | 1080 ±5nm |
| Frekuensi denyut nadi | 1 - 300Hz | Frekuensi modulasi | 1 - 5000Hz |
| Energi Pulsa Maks | 6J | Panjang serat keluaran | 2~3 m |
| Metode Pendinginan | Berpendingin udara | Tampilan sentuh | 5 inci |
| Ukuran | 374,5×191×330mm | ||
| Menyoroti | 300W/600W Handheld Laser Welding Machine,5-inch Touch Display Laser Welding Machine,0.5mm Focal Spot Laser Welder |
||
Deskripsi Produk

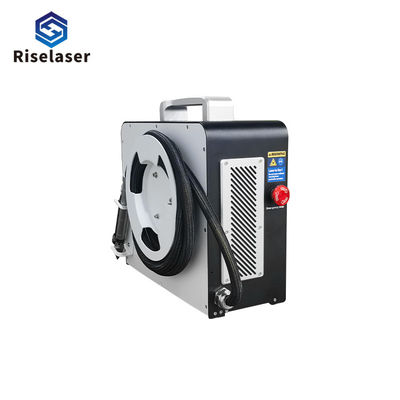

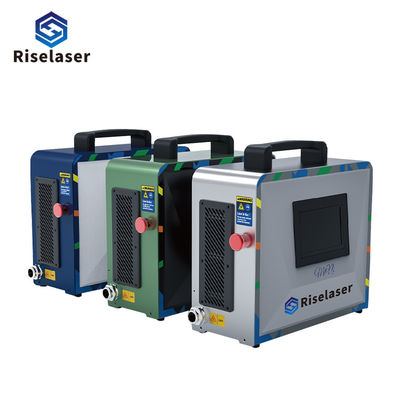

Handheld Spot Laser Welding Machine 300W/600W QCW Portable Spot Welder
Technical Specifications
| Product Model | Briefcase Series |
|---|---|
| Average Power | 300 |
| Peak Power | 600 |
| Laser Wavelength (nm) | 1080 ±5 |
| Pulse Frequency (Hz) | 1 - 300 |
| Modulation Frequency (Hz) | 1 - 5000 |
| Max. Single-Pulse Energy (J) | 6J |
| Output Fiber Length (m) | 2~3 |
| Cooling Method | Air-Cooled |
| Touch Display | 5-inch (Laser Controller) |
| Dimensions (mm) | 374.5 × 191 × 330(mm) |

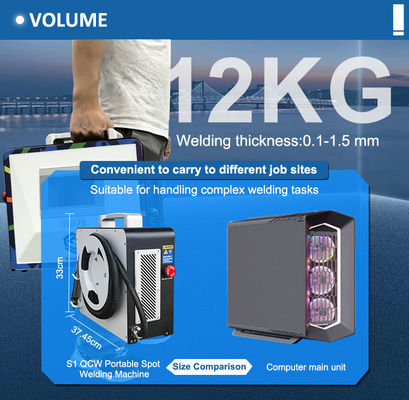

| Weight (kg) | 12 |
Frequently Asked Questions
How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
How long is the cable?
Different laser sources have different options. For example, the normal cable length of Raycus and Max is about 9 meters.
How thick can 1500W-3000W be welded?
1-8mm thick metal materials.
Is there a wire feeder?
We have a wire feeder to choose from. If you are interested, please contact us and provide your email address for more detailed information.
Can aluminum and galvanized steel be welded?
Yes, it can.
Packaging
All our machines are packed in wooden boxes.
Language interface
Supports language customization. You can also translate and insert to software.
